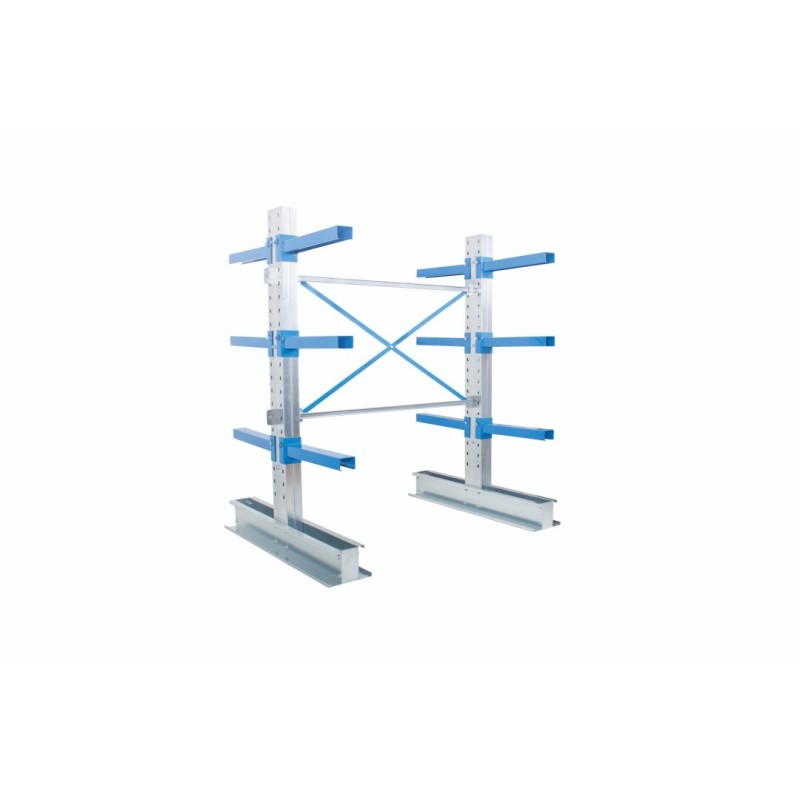

Double Sided Cantilever Rack 2432mm High
£1,527.84
Tax included
Cantilever system is based on modular bays and fittings to provide cost effective storage of long and awkward items.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The frames are available in three heights and three depths in both single and double sided configurations. Each bay comes complete with three arms per frame and you can add or deduct the number of levels required.
The arms can be fitted with end stops to secure any loose products from falling off. The frames are spaced 1000mm or 1500mm apart with bolted on X brace, so you can easily work out your run using the starter and extension bay.
All bays are supplied with a base and column per frame plus bracing and all necessary fixings.
- Easy to build and reconfigure
- Up to 2200kgs per side
- Arms adjustable every 75mm
- Max Load Arm 600kg*
Max Load Per Side
| Height (mm) |
Arm 600mm |
Arm 800mm |
Arm 1000mm |
| 1976mm | 2200kg | 1900kg | 1600kg |
| 2432mm | 2200kg | 1900kg | 1600kg |
| 2964mm | 2200kg | 1900kg | 1600kg |
ANC-083
100 Items
Data sheet
- Depth (mm) :
- 600,800,1000mm
- Width (mm) :
- 1000,1500mm
- Finish :
- Steel Galvanised / Epoxy
- Delivery Time :
- 5 working days
- Condition :
- New
- Sides
- Double Sided
- Height (mm) :
- 2432mm
